Milling units F045T-P

SKU: 042325

You are here

  1. Products>
  2. F045T-P

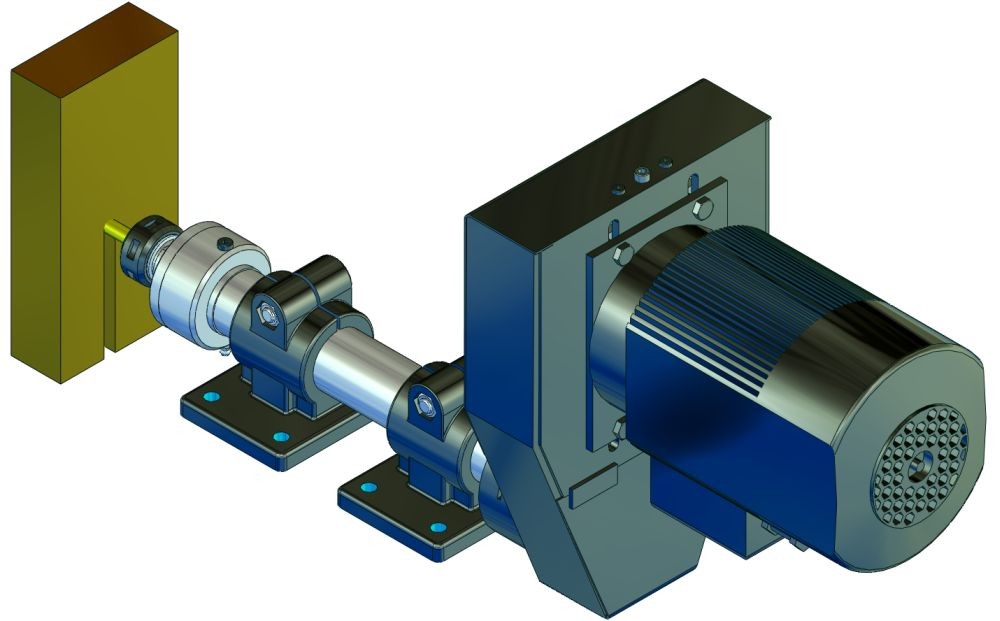

The spindles of the F045 series are units without own feed. They are equipped with a collet holder for collets size 16 (maximum shaft diameter 16mm) alternative tool receptacles can also be used.

For mounting the spindle you can use two FK45 flange clamp pieces on a feed carriage or slide movable machine element. The flange clamp pieces are integrated parts.

The milling spindles have a length of 350 mm. Because of their construction they are suitable ideal for use in tight space conditions. They can be used both horizontal and vertical.

By using a static frequency converter, the speeds of the Milling spindle F045T-P can be infinitely adjusted to 5,600 1/min.

Variants

Motor kW Motor speed 1/min Spindle speed 1/min Item Id.
1,7 2.800 12.320 043220
1,7 2.800 8.400 043221
1,7 2.800 5.600 043222
1,7 2.800 4.500 043223
1,7 2.800 2.800 043224
2,2 2.800 12.320 043225
2,2 2.800 8.400 043226
2,2 2.800 5.600 043227
2,2 2.800 4.500 043228
2,2 2.800 2.800 043229

More variants on demand!

Tabs

Specifications
Direction of drive rotation:
R.H.
Antriebsmotor: Drehzahl min:
2.800 1/min
Antriebsmotor: Leistung:
2,2 kW
Weight:
ca. 25,0 kg
Werkzeugaufnahme(n):
  • Collet Size 16
Werkzeugdrehrichtung(en):
R.H.
Werkzeugspindeldrehzahl max:
12.320 1/min
Werkzeugspindeldrehzahl min:
2.240 1/min
Antrieb:
V-ribbed belt drive
Accessories
NameArtikelnummer
Hook wrench 40/42
139040
Open end spanner 30 mm
131030
Collet Size 16
Categorization
Produktgruppe:
Motor driven units
Typische Einsatzbereiche:
  • Grinding
  • Milling
Geeignet für Werkstoffe:
  • Aluminium
  • Composite material
  • GRP/Carbon
  • Gypsum/Cement
  • Metal
  • Plastics
  • Steel
  • Stone
  • Wood
Häufig eingesetzt in den Branchen:
  • Building trades/-industrie
  • Vehicle construction / -parts supplier
  • Wood and furniture industry
Downloads
PDF iconDrawing F045T-P
As registered customer you may access further product related downloads here.
F045T-P
F045T-P
