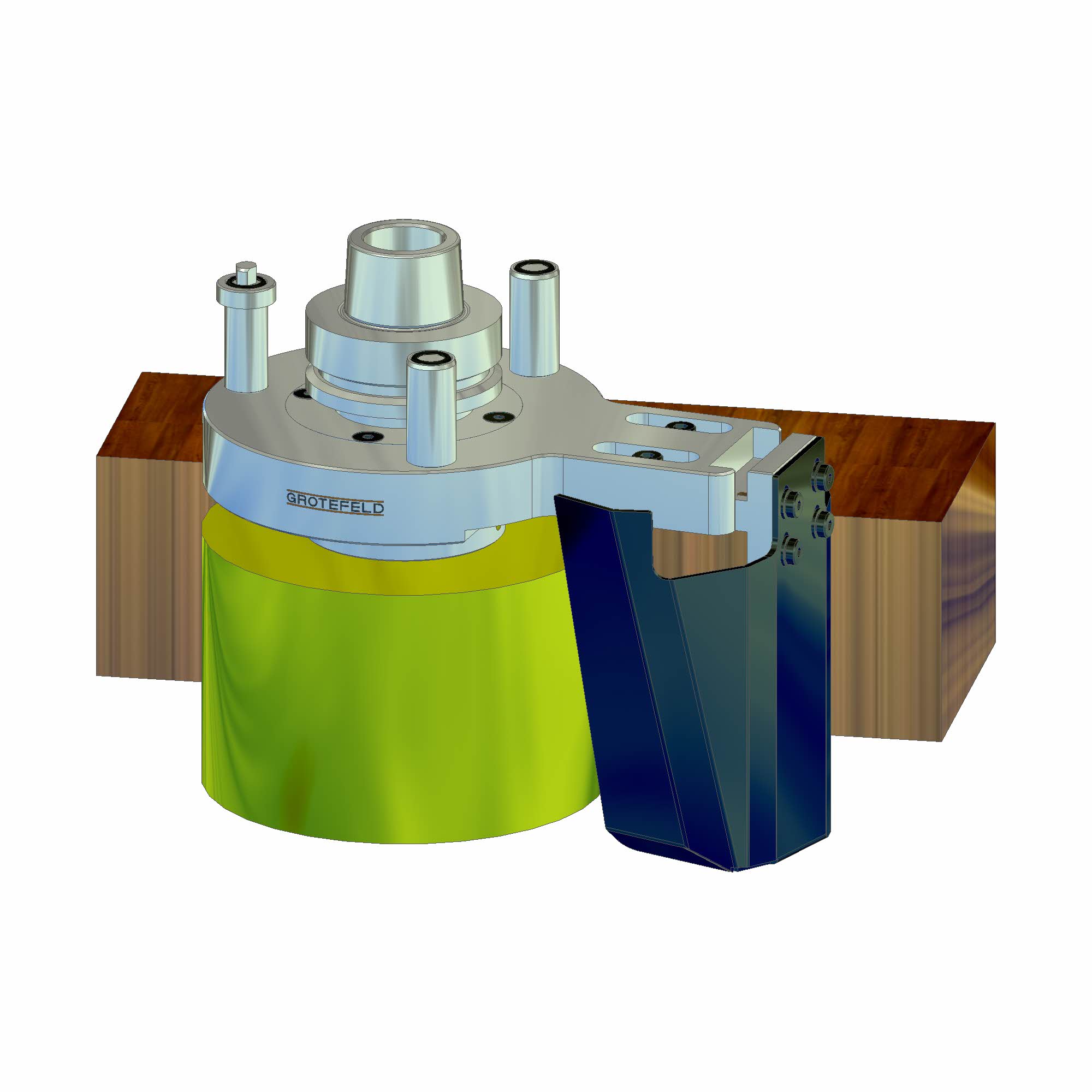

Chip guiding system DN-SPL
SKU: EP-120641
The chip guiding systems of the series DN-SPL have a tool receptacle according to your specifications. The direct receptacle DN-SPL is used for direct reception of tools for the processing of solid wood or wood-like composite materials. The standing adapter casing (due to torque support) is used for mounting chip deflectors, according to the used profiling tool. The maximum spindle speed is 18.000 1/min in permanent operation.
The chip guiding system DN-SPL is always supplied with a drive spindle according to your indications. It is necessary to indicate - in case of order - the information regarding the drive spindle in question in addition to the article-number. Usually it is a spindle according to the DIN / ISO regulations. Corresponding to your order you will receive within our order confirmation a final article-number that was extended by the information referring to the direct receptacle built for you. This article-number then applies for this specific configuration and can be used for all further orders without any additional information.
Attention:
In the selection and purchase of tools, you should prefer cutters with an aluminum body to minimize the rotating forces. Additionally the fine counter balance of the tools must be considered.
Variants on demand!
